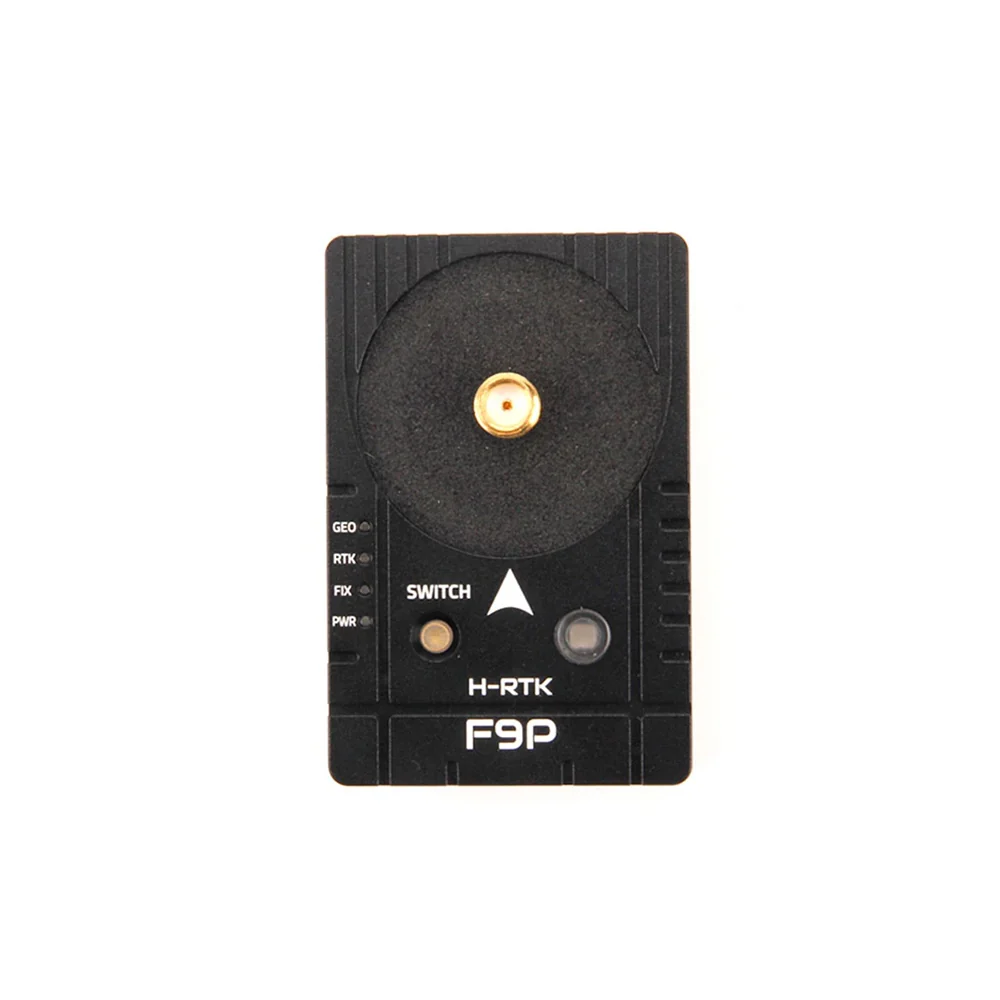

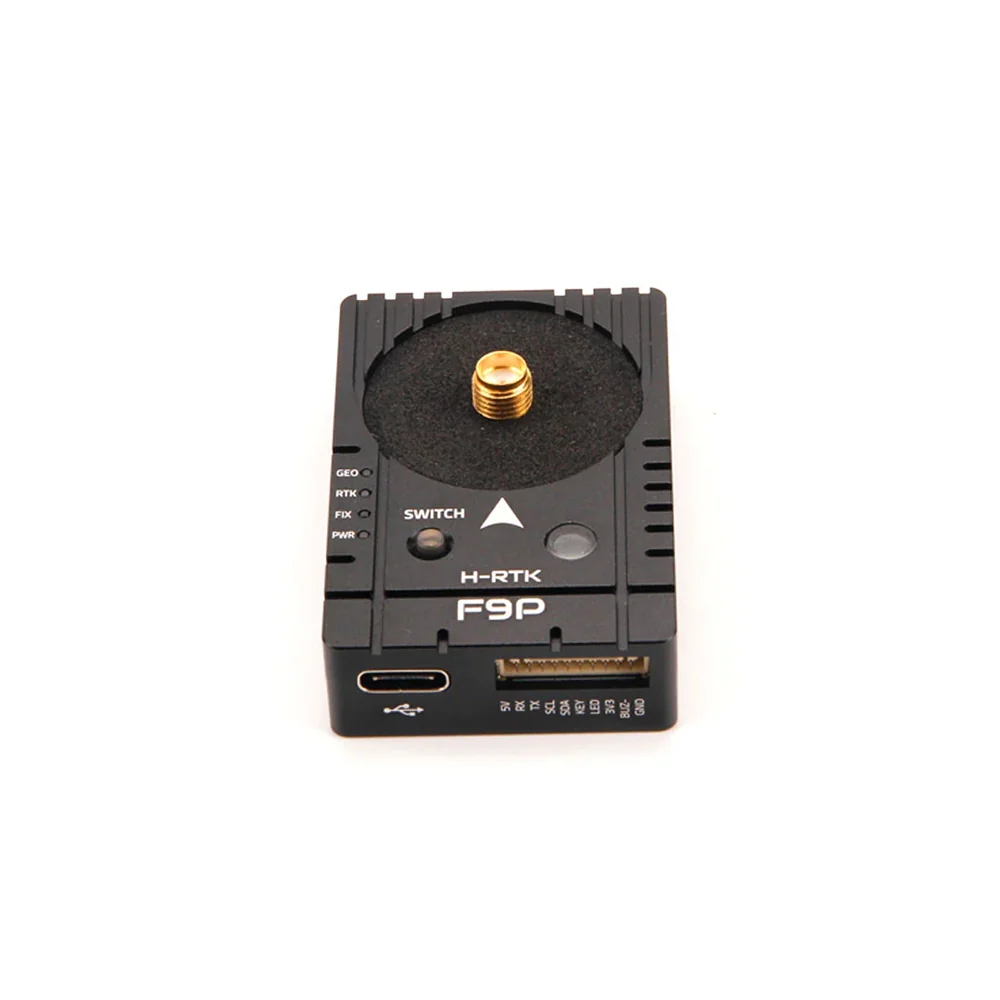

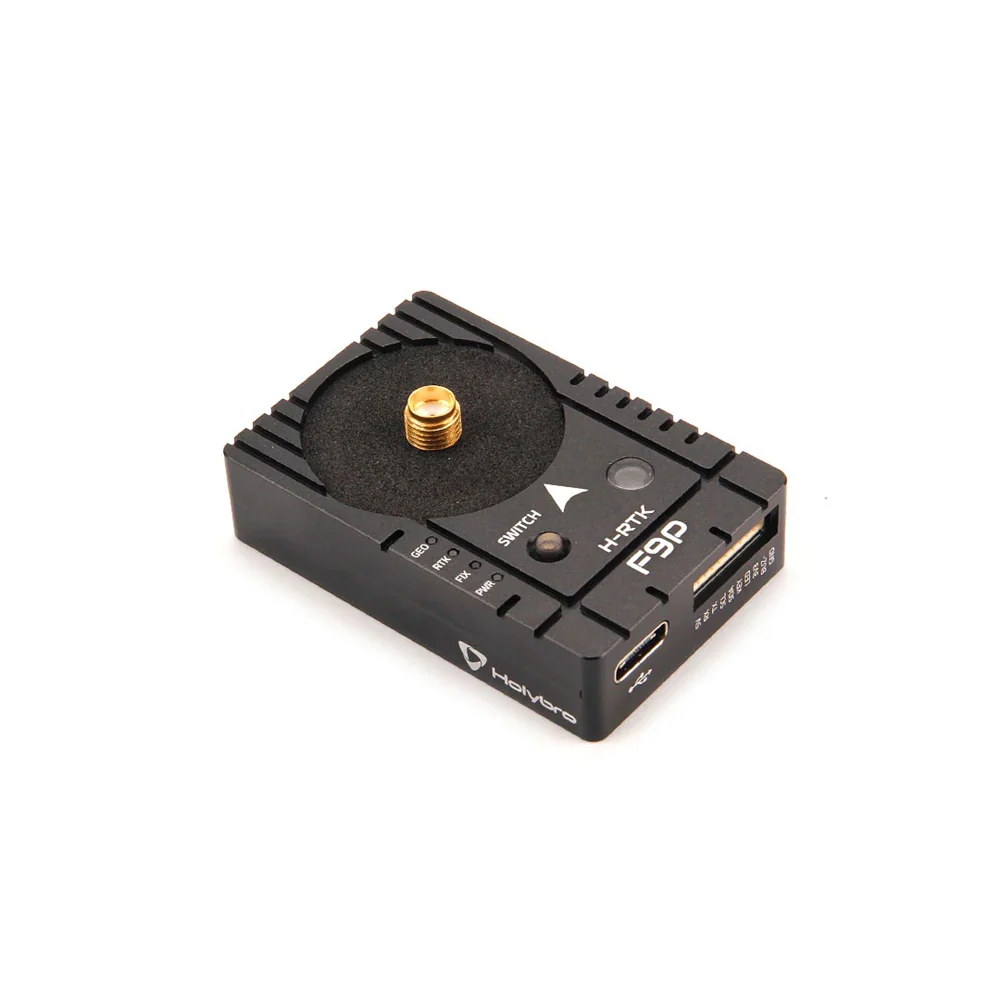

Holybro H-RTK F9P Rover Lite GNSS positioning system Series (IST8310 Compass)
H-RTK F9P is the latest differential high-precision GNSS positioning system series from Holybro. This system provides multi-band RTK with fast convergence times and reliable performance, concurrent reception of GPS, GLONASS, Galileo and BeiDou, and fast update rate for highly dynamic and high volume applications with centimeter-accuracy. It uses a UBLOX ZED-F9P module, a IST8310 compass, and a tri-colored LED indicator. It also has a integrated safety switch for a simple and convenient operation.
We have designed different models of for you to choose, each with different size and antenna design to meet different customer needs.
RTK Testing & Comparison: Big GPS Round Up by Andrew Tridgell (Ardupilot)
Note: The Status LED driver has changed. This LED is support in PX4 1.14, ArduPilot 4.4.0 & later. (More info)
Specifications:
- Application: Rover (aircraft) only
- GNSS: GPS L1C/A GPS L2C GLONASS L1Oz GLONASS L2OFz) BeiDou B1 BeiDou B2Hz) Galileo E1-B/CH Galileo E5b
- Antennas Peak Gain (MAX): L1: 4.0dBi L2:1.0 dBi
-
LNA Gain (typical): 20.5±1dB
-
Time-TO-First Fix: Cold start:≤29s Hot start:≤1s
-
Data and Update Rate: RAW: 20Hz Max RTK: 8Hz Max
-
Port: GH1.25 10pin cable or GH1.25 6pin cable
- Cable Length: 26cm
-
Baud rate: 115200 5Hz (default) can be set
-
Working voltage: 4.75V~5.25V
-
Current Consumption: ~250mA
-
Dimensions: Diameter: 76mm Height: 20mm
- IP Rating: IPX6
- Weight: 106g
Other technical information can be found in our Holybro Documentation Page.
Reference Links
Package Includes:
-
1 x H-RTK F9P
-
1 x High Precision GNSS Antenna (CSX627A)
(Note: The CS7624A antenna on the H-RTK F9P Base (SKU12022) & M8P Base (SKU12021) has been be replaced with similar CSX627A until further notice. - Male-male SMA-TNC cable(length: 5m) *1 - 1/4'' Female to 5/8'' -11 Male Adapter *1 - USB type-c cable *1 *Tripod mount not included (sold separately)
