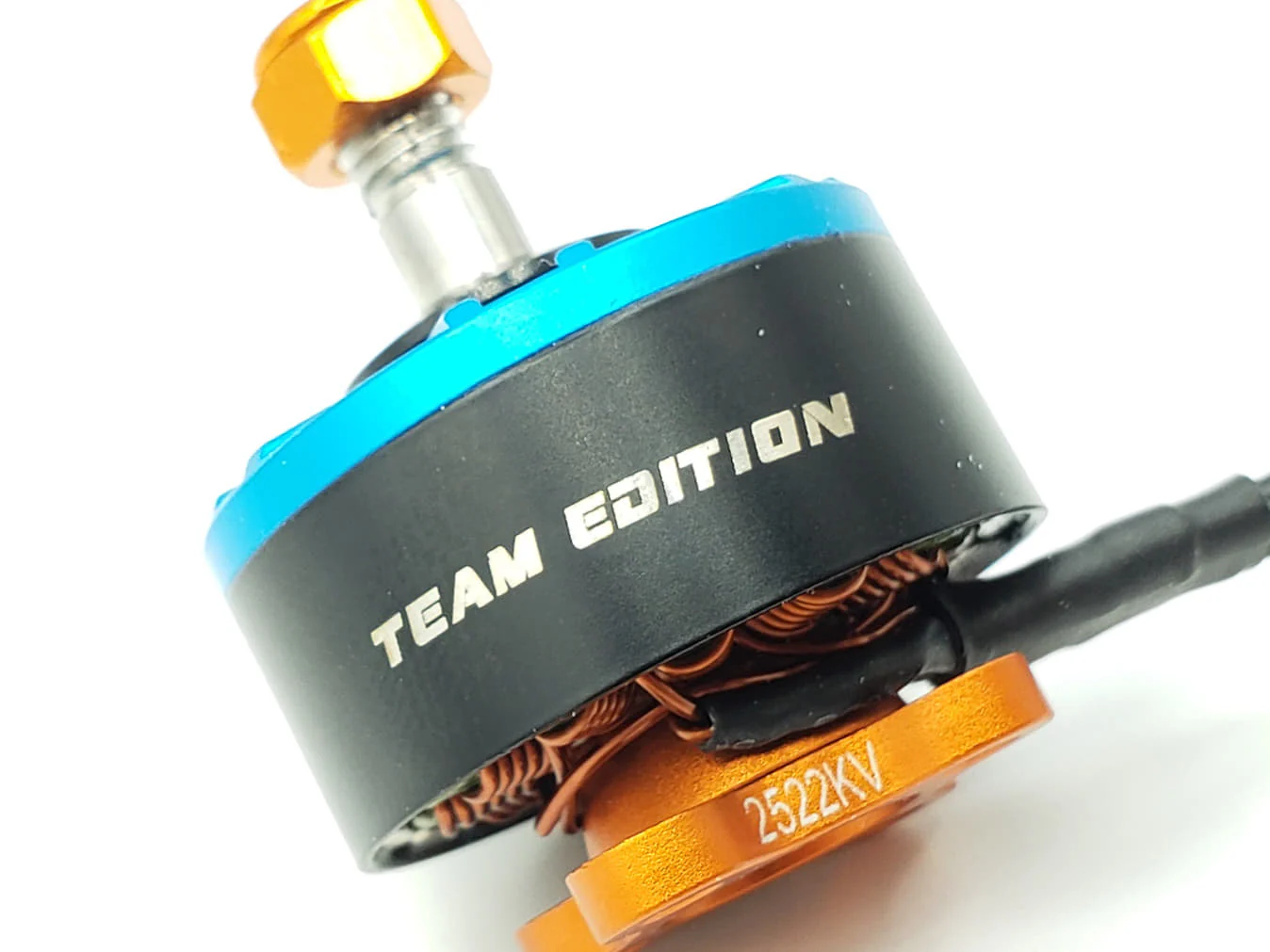

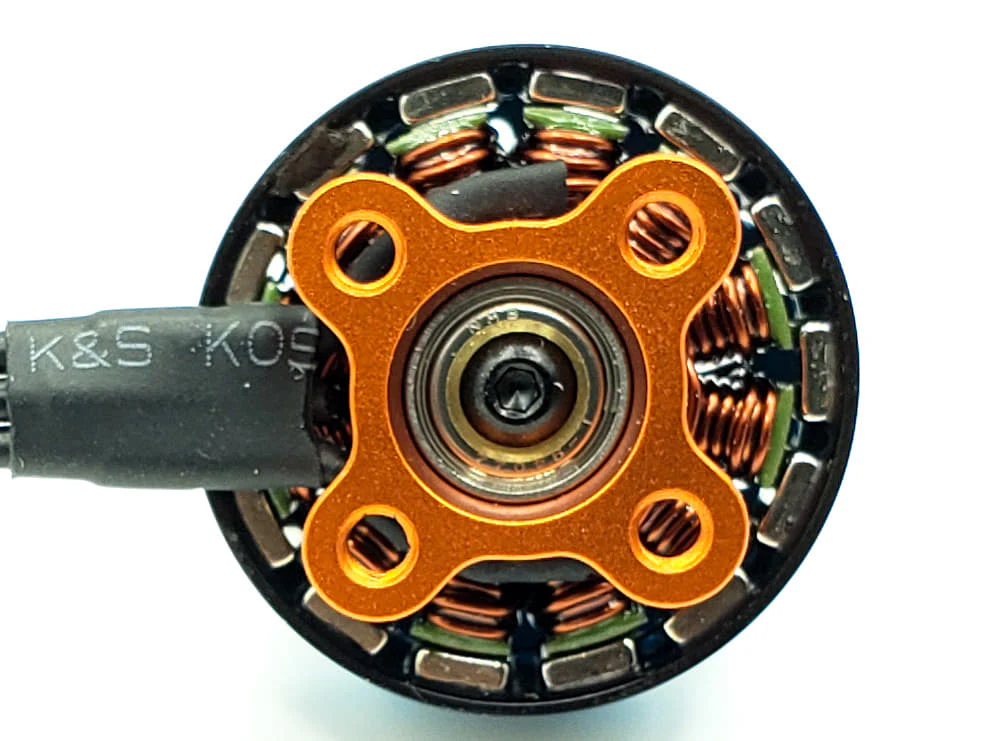

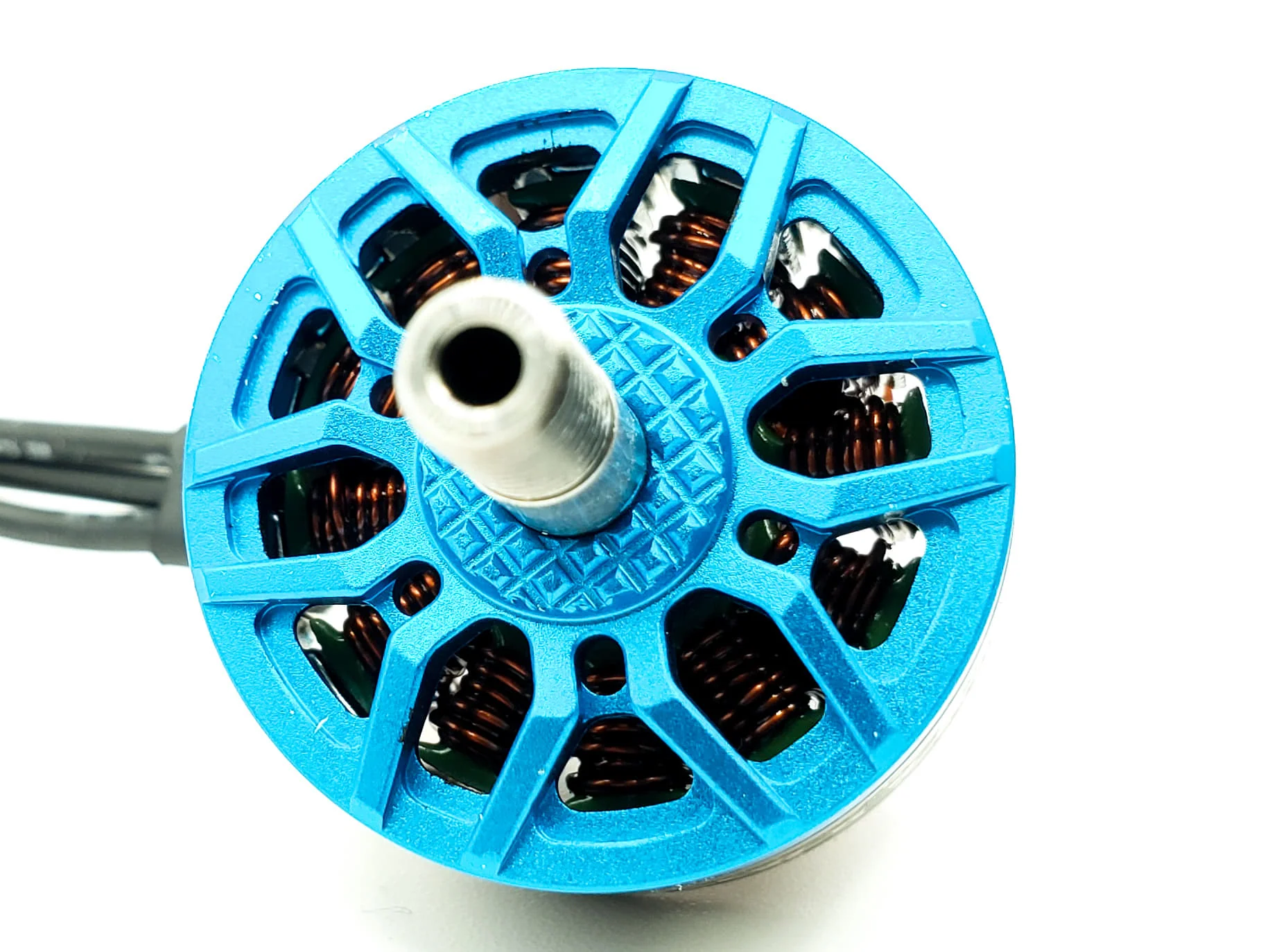

Hyperlite 2208.5-2522KV TEAM EDITION

Here is the last piece of the Hyperlite 22xx 9mm bearing line up.
Torque and speed for days, this is a perfect motor for freestyle and under 2 minute racing.

SPECIFICATIONS

KV: 2522KV
Base casing: Al 7075
Stator: 0.15mm Nippon Steel silicon steel
Configuration: 12N14P
Prop Adapter Shaft Thread: M5
Shaft: Titanium Alloy hollow shaft
No.of Cells(Lipo): 4-6S
Bolt Pattern: M3 (16X16mm)
Bearings: Japanese NMB 9x4x4mm
Rotor: N52H arc magnets
Weight: 32.8g with short wires
Wire AWG: 20AWG 16cm length
Bell cap: Al 7075
