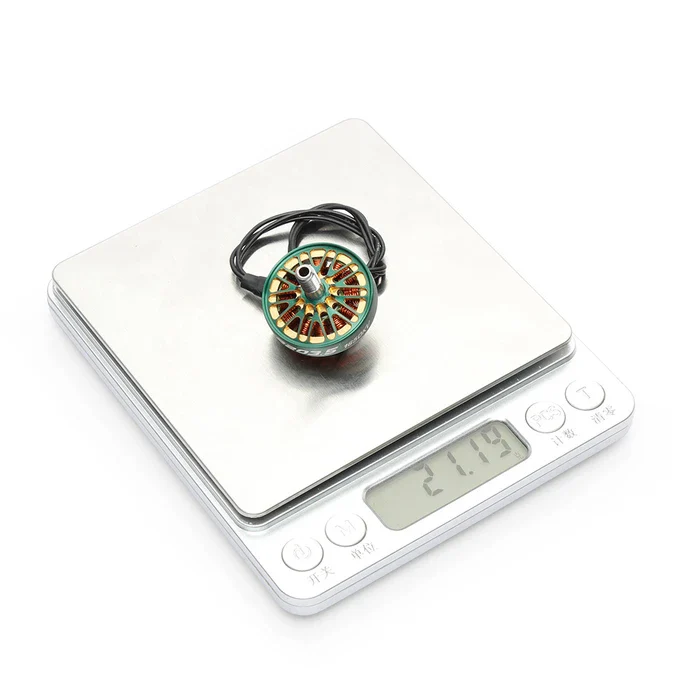

Diatone Mamba TOKA 2203.5 3300KV Racing motor

MAMBA TOKA 2203.5 3300KV Racing motor

Check out all our Motors and the rest of our Diatone Products!

Specifications:

• Overall Dimension:Φ28.9×29.4mm

• prop mounting shaft diameter:5mm

• Installation hole position:16×16mm，M3

• Prop:  5inch

• Bearing：9*4*4

• Shaft Diameter:4.0mm

• Lead Wire Size：24AWG×190mm

• slots/poles:12N14P

• Magnet Wire: 240℃ Enameled Wire

• Stator Diamter：22mm

• Stator Height:3.5mm

• Rated Voltage:4~6S (16.8V~25.2V)

• Peak Current: 15.59A

• ldle Current：10V/0.3~1.0A

• Maximum Power: 380.8W

• Internal Resistance：232Ω

Package Includes:

• 1 x  MAMBA TOKA 2203.5 3300KV Racing motor
