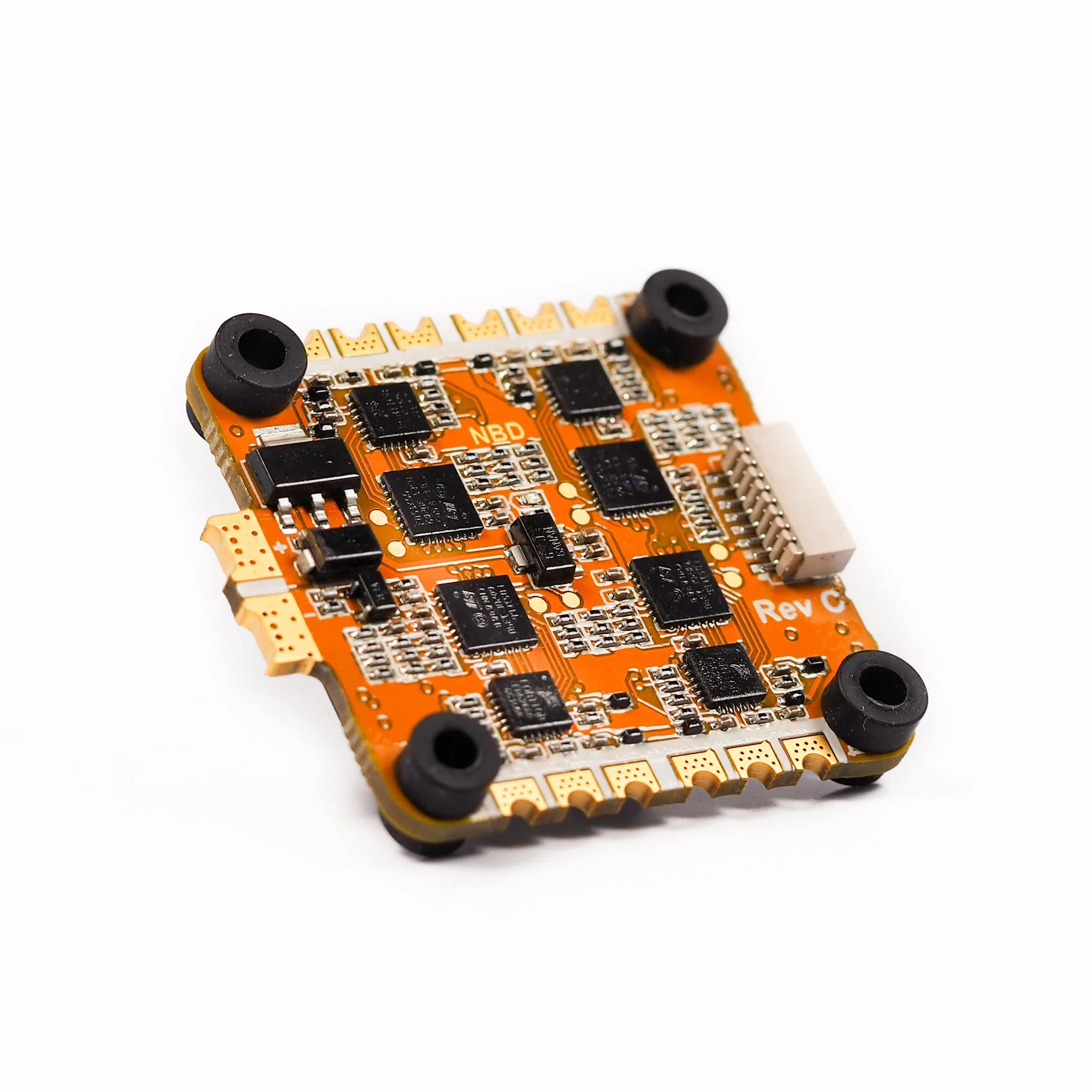

NewBeeDrone Infinity305 3-6s 4n1 ESC (45A + 55A Burst) - 30x30mm

This ESC is part of the NewBeeDrone Infinity305 Stack that is plug-and-play with the DJI Digital FPV System!

Infinity 305 ESC Spec:
• LiPo Power input: 3S-6S
• ESC Programming: BLHeliSuite32
• Cont.Current: 40Ax4
• Burst Current: 55Ax4
• Weight / Size: 15.0g / 41x37.5x6mm
• Mounting holes: 30.5x30.5mm
• Signal plug JST1.0 8pin plug with NBD Infinity30FC
• Solder pad ready for signal and power.
• Heatsink design
• 10 Layer PCB with 2Oz Copper Only PCB weight: 9grams
• On board capacitor: 10uf x 48 Total 480uF, No need for external Capacitor
• BLHeli32 Programable Sided RGB LED x4
• Smoov performance design by Team NBD

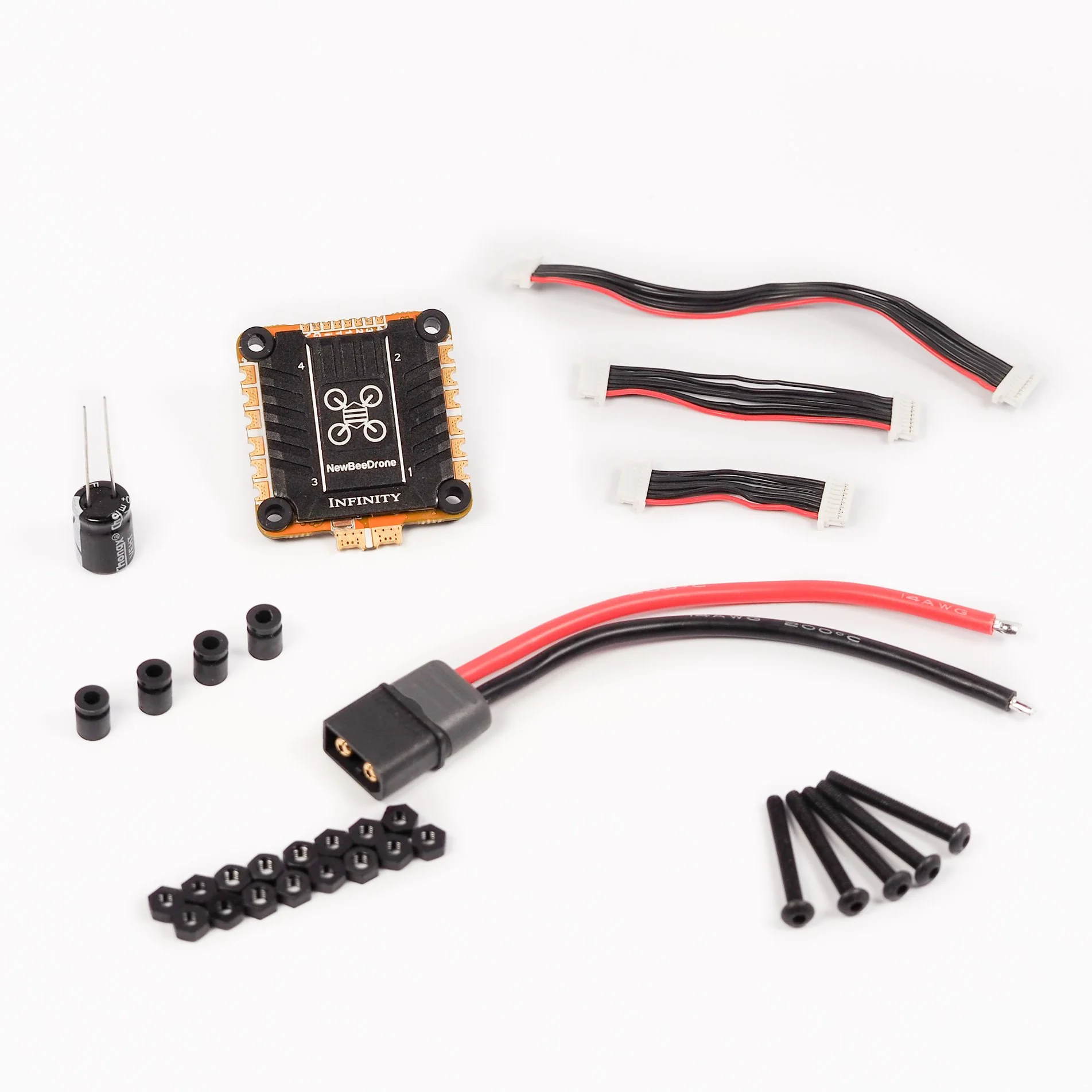

Includes:

• 1x  Infinity305 4 in 1 ESC BLHeli32
• 4x Grommets short 4x Grommets Long
• 5x Steel Screw 25mm
• 13x Nylon Lock nut
• 1x Infinity305 FC to Infinity305 ESC cable 30mm
• 1x Infinity305 FC to Infinity305 ESC cable 50mm
• 1x Infinity305 FC to Infinity305 ESC cable 85mm
• 470uf 35v Electrolytic capacitor
