RADIX LI Wing Power Board
HomeStore

RADIX LI Wing Power Board

RADIX LI Wing Power Board

The RADIX LI Wing Power Board is a companion to the 20×20 RADIX LI Flight Controller. Together they form the worlds smallest flight control system for RC airplanes and wings, with an integrated GRAPHICAL OSD (on-screen display)!

Check out all our Fixed Wing Flight Controllers and the rest of our BrainFPV Products!

Specifications:

    • Battery Voltage: 3S to 5S (8V to 22V)
    • Maximum Current: 40A constant, 60A burst
    • Voltage Regulator: Integrated 5V, 3A regultator. By default, servos are powered by the ESC. The wPB has a jumper to enable powering small servos
    • Noise Filter: 5V, 1A  filtered output for clean video (1A is shared with 5V / 3A regulator)
    • Current Measurement: Up to 65A (50 mV/A, current scale: 500)
    • ESC Output: Output for 1 x ESC on servo headers
    • Servo Outputs: Outputs for up to 5 servos on headers
    • LEDs: Output for programmable RGB LEDs
    • Stacking height: 5.5mm (space between RADIX LI FC and RADIX LI wPB)
    • PCB: 4 layer, 3oz (105um) copper per layer. HASL plating (lead-free)
    • Dimensions: 26.5 mm x 34 mm
    • Weight: 5g



    Package Includes:

    • RADIX LI Wing Power Board
    • 10-pin cable for connection to RADIX LI Flight Controller

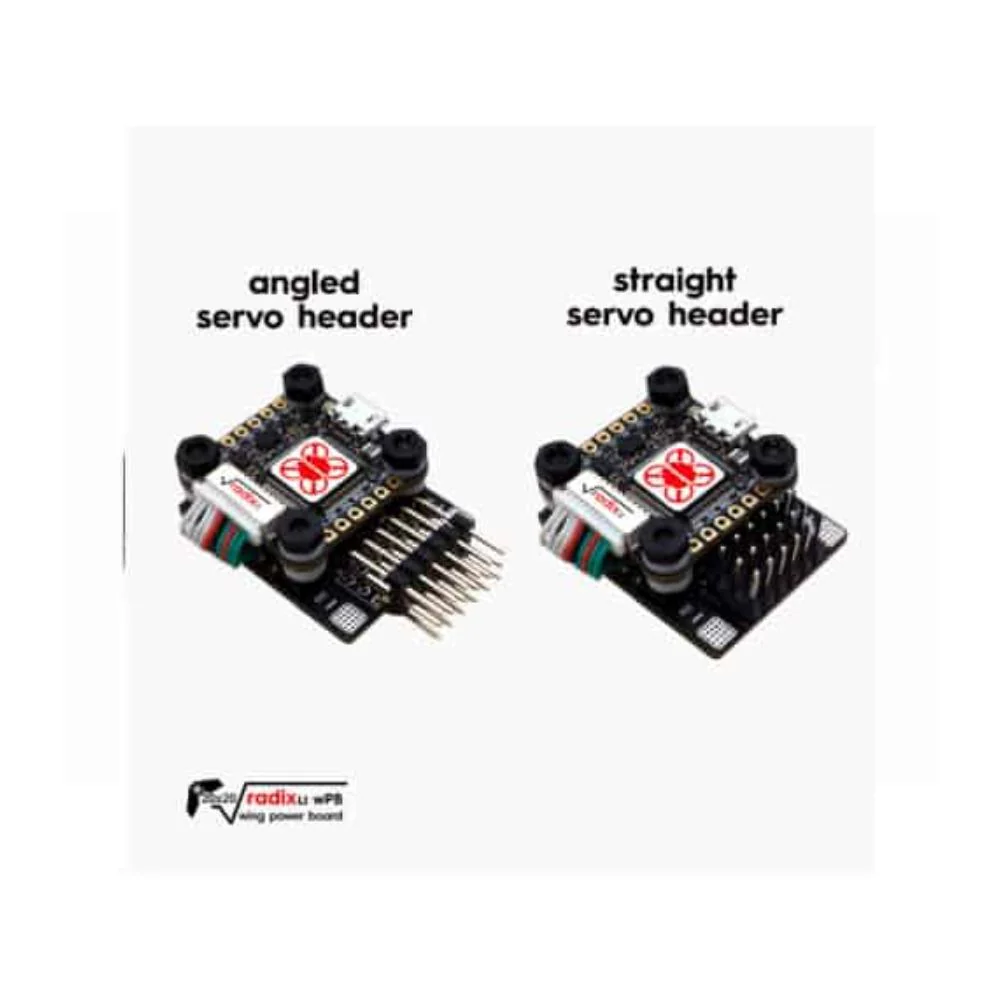

    • Servo headers: straight and angled
    • 25V / 470uF capacitor
    • Wire for connecting outputs 5 and 6
