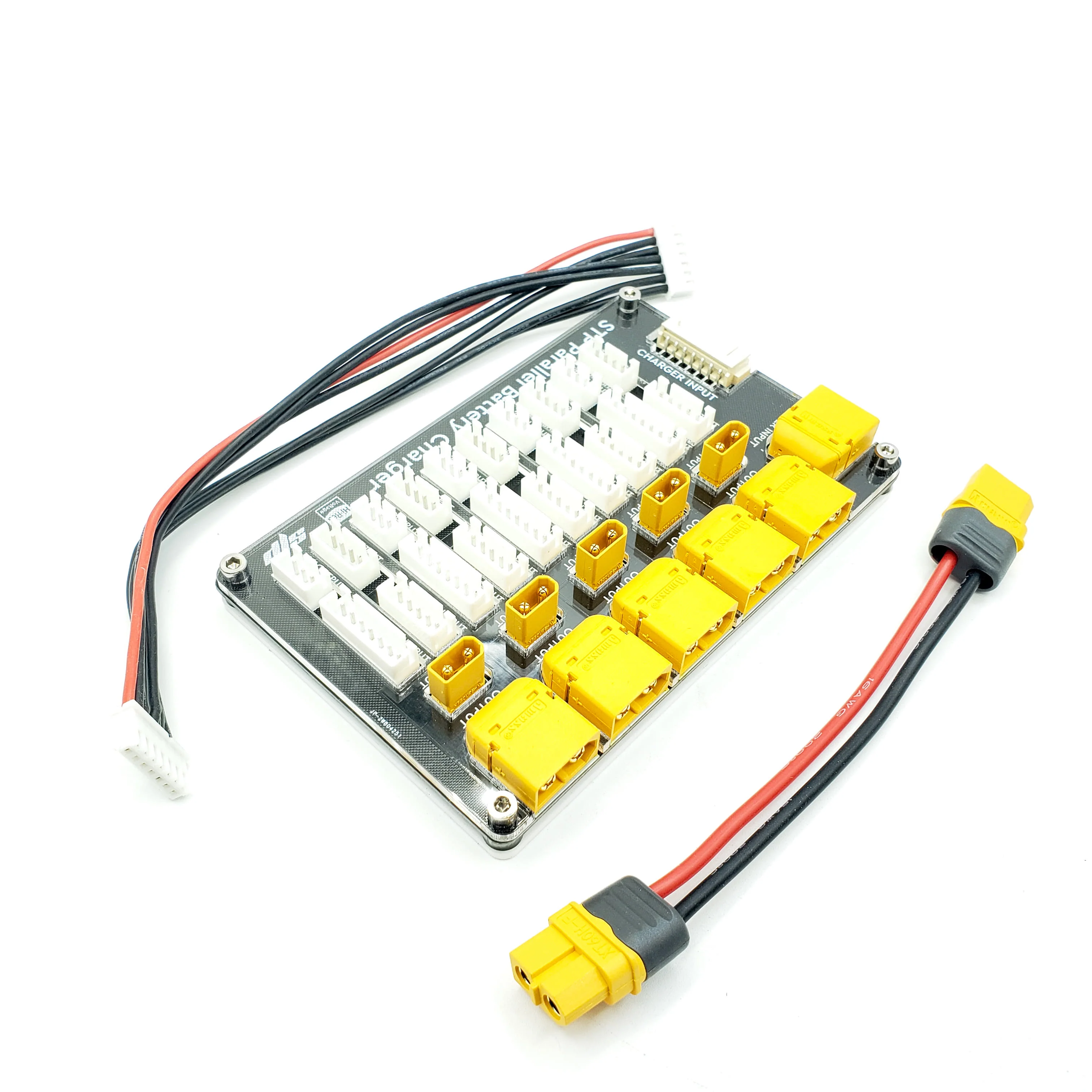

STP S4 XT30/XT60 Parallel Balance Charging Board (2-6S)

A perfect charge board to keep all those micro batteries in tip-top shape.
Charge and balance up to 6 batteries at the same time with this XT30/XT60 Parallel Balance Charging Board. Compatible with 2-6s LiPo batteries.

Has slots for five XT-30 batteries charging at 2-6S and one slot for an XT-60 at 3-4S.

Specifications

• Material: Acrylic board
• Dimension: 60*100*20MM
• Weight: 75g
• Output Plugs
• 5 x XT-30 at 2-6S
• 5 x XT-60 at 3-6S
• MAX XT-60 Single Port Input Current: 30A (10℃) / 45A (30℃)
• MAX XT-60 Single Port Output Current: 30A (10℃) / 45A (30℃)
• MAX XT-30 Single Port Output Current: 30A (10℃) / 45A (30℃)
• MAX Balance Port Input Current: 10A per wire (10℃) / 15A per wire (30℃)
• MAX Balance Port Output Current: 10A per wire (10℃) / 15A per wire (30℃)

Note: When balance charging, all voltages (cell counts) must be the same across batteries. Always practice safe charging practices. Never leave batteries charging unattended.

Includes

• 1 x STP S4 XT30/60 Parallel Balance Charging Board (2-6S)
