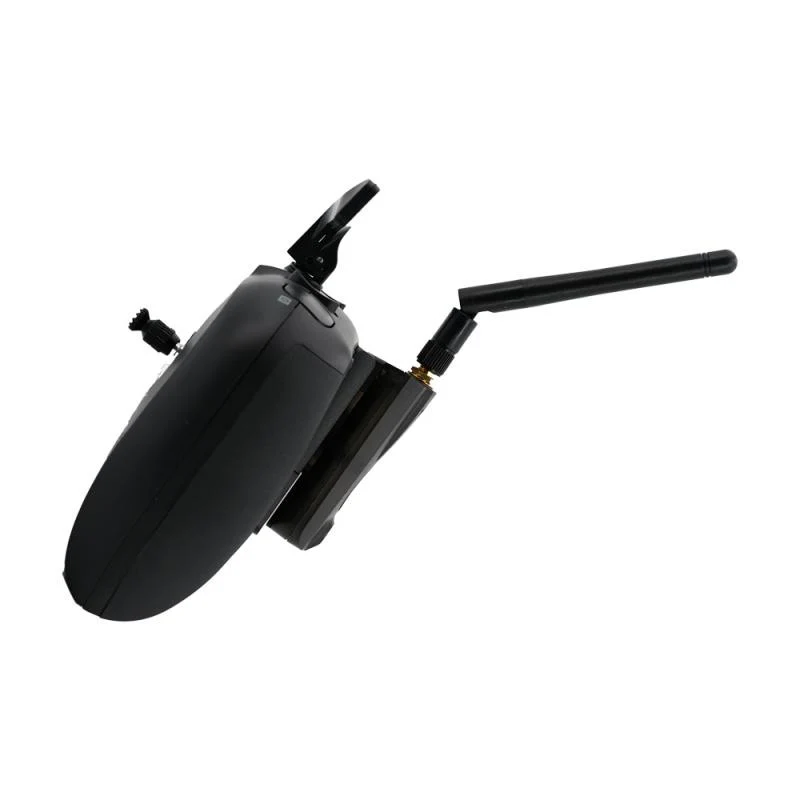

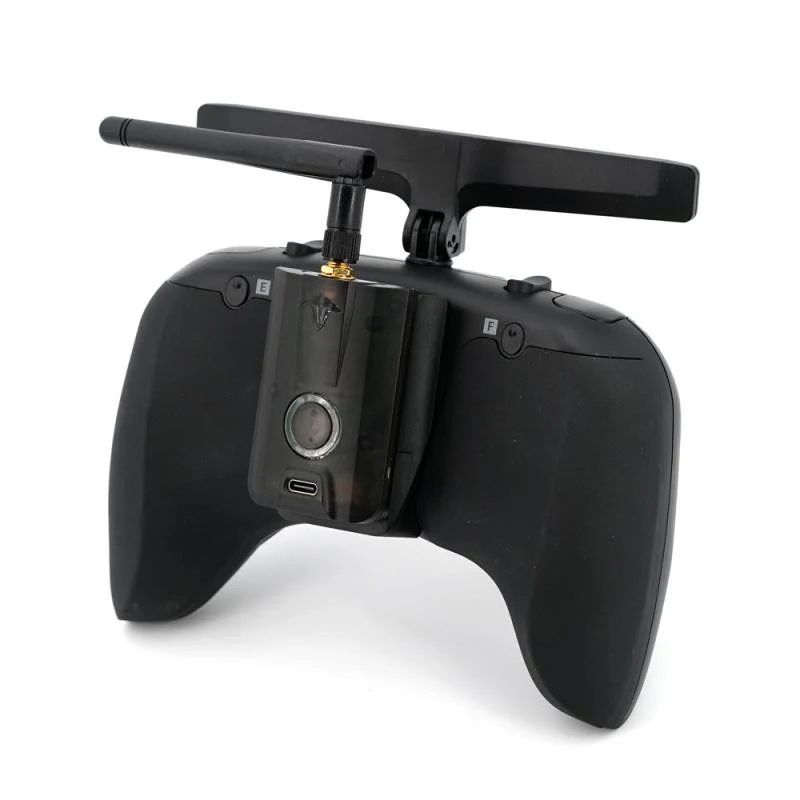

TBS Multi Protocol Module (MPM)
BS Multi-Protocol Module (MPM) Transmitter Module, compatible with OpenTX / FreedomTX for TBS Tango 2, X-Lite, and X9 Lite.
The TBS MPM, designed in collaboration with RadioMaster, features the four main RF chipsets (CC2500, NRF24L01, A7105, and CYRF6936) all integrated into a single product. Thanks to OpenSource developers, compatibility with most common R/C protocols is provided through a single module, powered by OpenTX / FreedomTX. With an integrated RF amplifier, the module provides a competitive range.
Check out all our External Modules and Accessories and the rest of our TBS Products!
Specifications:
- Input voltage: 6-9v
- Current: ~100mA
- Operating frequency: 2.4GHz ISM band
- RF power: +20DBM (100mW)
- Main Chipset: STM32
- Opensource Repo: Github
- Model compatibility: Alphabetical List (external link)
- Firmware updatable via USB-C port
Package Includes:
- 1x TBS MPM
Original: $74.99
-70%$74.99
$22.50More Images
TBS Multi Protocol Module (MPM)
BS Multi-Protocol Module (MPM) Transmitter Module, compatible with OpenTX / FreedomTX for TBS Tango 2, X-Lite, and X9 Lite.
The TBS MPM, designed in collaboration with RadioMaster, features the four main RF chipsets (CC2500, NRF24L01, A7105, and CYRF6936) all integrated into a single product. Thanks to OpenSource developers, compatibility with most common R/C protocols is provided through a single module, powered by OpenTX / FreedomTX. With an integrated RF amplifier, the module provides a competitive range.
Check out all our External Modules and Accessories and the rest of our TBS Products!
Specifications:
- Input voltage: 6-9v
- Current: ~100mA
- Operating frequency: 2.4GHz ISM band
- RF power: +20DBM (100mW)
- Main Chipset: STM32
- Opensource Repo: Github
- Model compatibility: Alphabetical List (external link)
- Firmware updatable via USB-C port
Package Includes:
- 1x TBS MPM
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
BS Multi-Protocol Module (MPM) Transmitter Module, compatible with OpenTX / FreedomTX for TBS Tango 2, X-Lite, and X9 Lite.
The TBS MPM, designed in collaboration with RadioMaster, features the four main RF chipsets (CC2500, NRF24L01, A7105, and CYRF6936) all integrated into a single product. Thanks to OpenSource developers, compatibility with most common R/C protocols is provided through a single module, powered by OpenTX / FreedomTX. With an integrated RF amplifier, the module provides a competitive range.
Check out all our External Modules and Accessories and the rest of our TBS Products!
Specifications:
- Input voltage: 6-9v
- Current: ~100mA
- Operating frequency: 2.4GHz ISM band
- RF power: +20DBM (100mW)
- Main Chipset: STM32
- Opensource Repo: Github
- Model compatibility: Alphabetical List (external link)
- Firmware updatable via USB-C port
Package Includes:
- 1x TBS MPM
